Day 02
Schedule
| Time | Desc |
|---|---|
| 9:30 - 9:45 | Intro of the day |
| 9:45 - 10:00 | Sharing |
| 10:00 - 12:00 | Work on assignement |
| 12:00 - 13:00 | Lunch break
|
| 13:00 - 15:00 | Work on assignement |
Iterative Patterns
Brief
Write some code to generate tiling pattern or textural composition. Give consideration to aesthetic issues like symetry, rhythm, color, details at multiple scales; precise balance of form and the balance between organic and geometric forms. The pattern should be designed so that it is infinitely tiled or extended.
You must first sketch your idea on paper before working with the software.
Variations / Steps
- Make a grid
- Animate the elements in your grid
- Experiments with 2D graphic transformations (rotation, scaling, mirror, offset)
- Use nested iterations
- Add some easing
- Use a kaleidoscopic effect (you can introduce image or videos as source)
- Make it loop
- Export it as a GIF
- Add states
- Add noise / randomness
- Make it “sketchy”
- Take it to the 3rd dimension
Deliverables
- Code and documentation of your process, add some live example + gifs / images.
- Include a scan or photo of your drawings in the post
More on patterns
A pattern is a discernible regularity in the world or in a manmade design. As such, the elements of a pattern repeat in a predictable manner. A geometric pattern is a kind of pattern formed of geometric shapes and typically repeated like a wallpaper.
Try to experiment with different type of patterns, for example: Tessellations. Tessellation, or tiling in two dimensions, is a topic in geometry that studies how shapes, known as tiles, can be arranged to fill a plane without any gaps, according to a given set of rules. There are many forms of tesselation and you are invited to read some of the pages below to learn more about each of those tesselation technics:
✎ Ideas for experiments (1)
Try to recreate some of the patterns below, add interactivity. Start simple then complexify your system gradually.
You will find code examples in the book Generative Gestaltung (P_2_1)
CheckPinterest pattern board
(temp pinterest account: tmp.pin@gmail.com / TT4[bosses )
Escher tesselations
✎ Ideas for experiments (2)

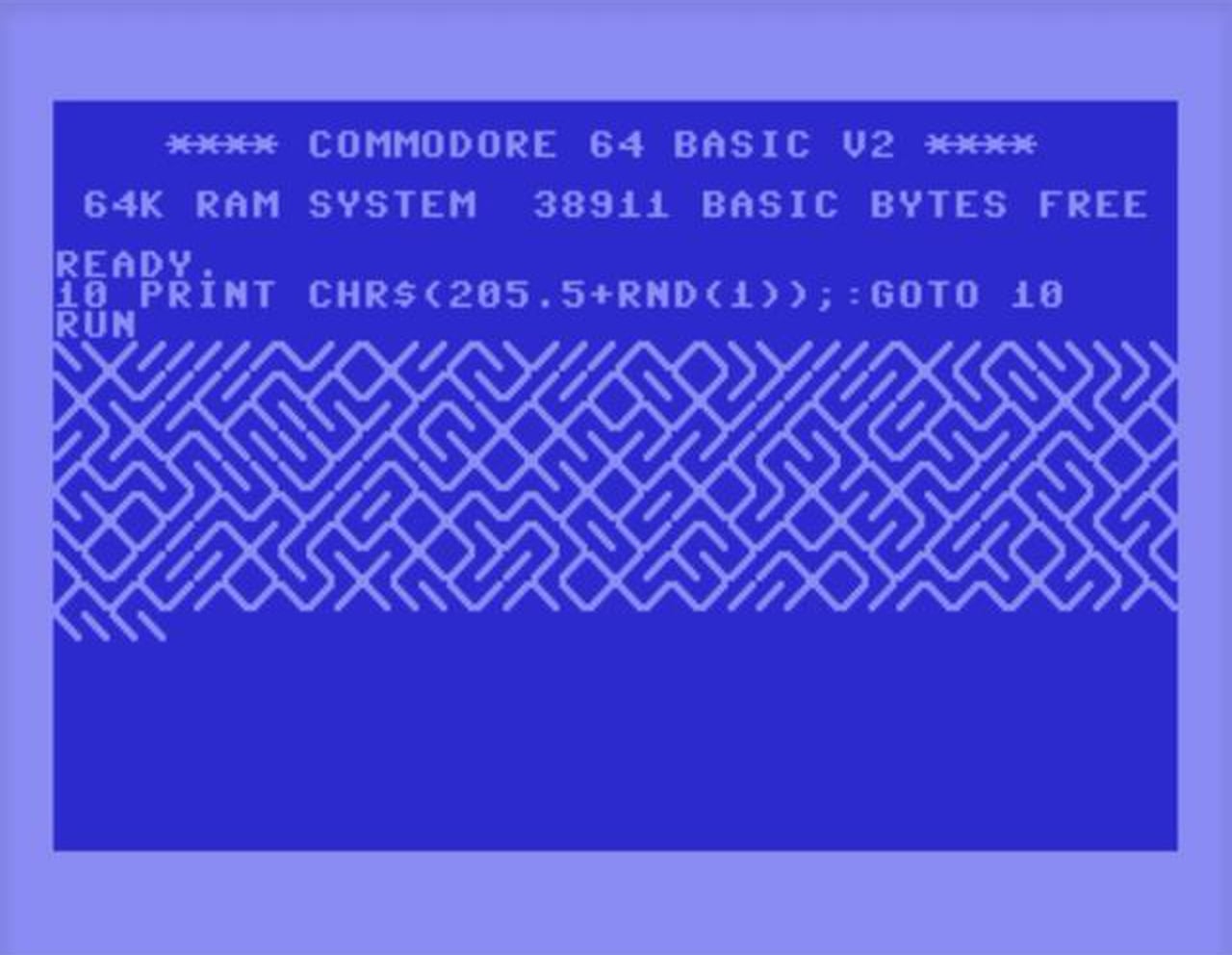

Let’s have a look at a fun little command line code originally written in Basic on the C64 in the early 80’s:

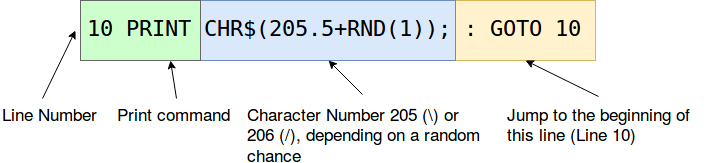

10 PRINT CHR$(205.5+RND(1)); : GOTO 10
Even though the code in itself is similar to the algorithms that generate patterns we explored before; With certain settings the visuals it produces are quite similar to outputs generated by intelligent agents programs.
Recreate a version of 10print in p5.js and create some variations
Resources
